Product Description
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROHS and UL certified.
1.Characteristic：The LAY5 series has a long market life, high stability, and high repurchase rate..Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
2.Product Features：It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.
3.Product material：The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.

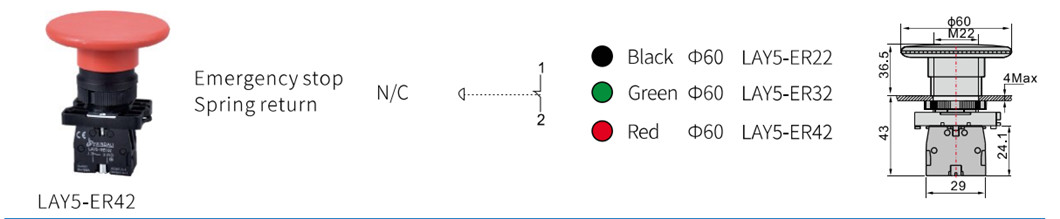

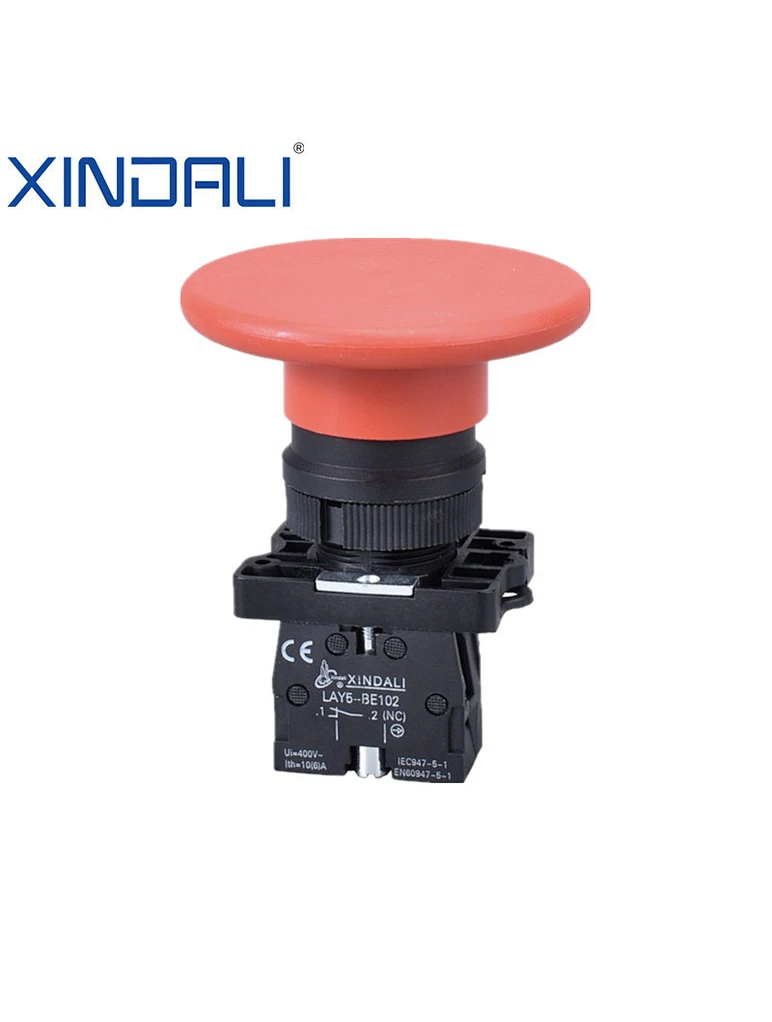

The XB2 Push Button Switch with 60mm Mushroom Head Emergency Push Button LAY5-ER42 is a high-quality, reliable switch that is perfect for emergency situations. The 60mm mushroom head ensures easy access and quick operation, while the durable construction guarantees long-lasting use. The switch is designed for use in a variety of applications, including machinery, vehicles, and industrial equipment. It is IP65 rated, ensuring protection against dust and water ingress. The contacts are made of high-quality materials, ensuring a long life span and smooth operation. With its ergonomic design and ease of use, this switch is the perfect choice for any critical application.
Main technical parameter | ||||
Basic technical parameter of button | Basic technical parameter of signal lamp | |||
Rated insulation | AC 600V(50Hz/60Hz) | Insulation resistance | ≥50MΩ | |
Conventional heating current | 10A | Contact resistance | ≤25MinΩ | |
Insulation resistance | ≥50MΩ | Pf withstand voltage | AC 2.5KV/min | |
Contact resistance | ≤25MinΩ | Voltage wave | ±20% | |
Mechanical life | 100x10000 | 50x10000 | Brightness | 60cd/m2 |
Electrical life | 500x10000 | 25x10000 | Continuous working life | 10x10000h |

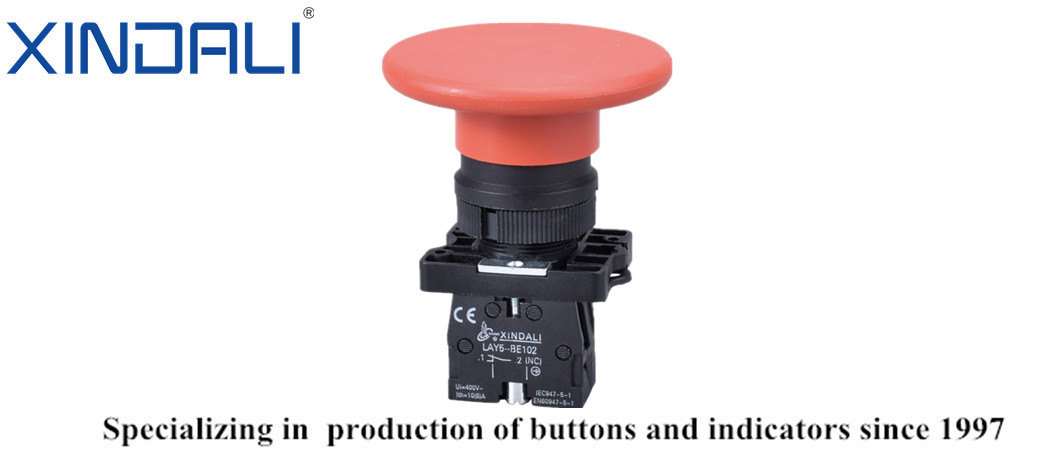

Product Show
