Product Description
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROHS and UL certified.
1.Characteristic：The LAY5 series has a long market life, high stability, and high repurchase rate..Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROSH and UL certified.
2.Product Features：It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.
3.Product material：The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.

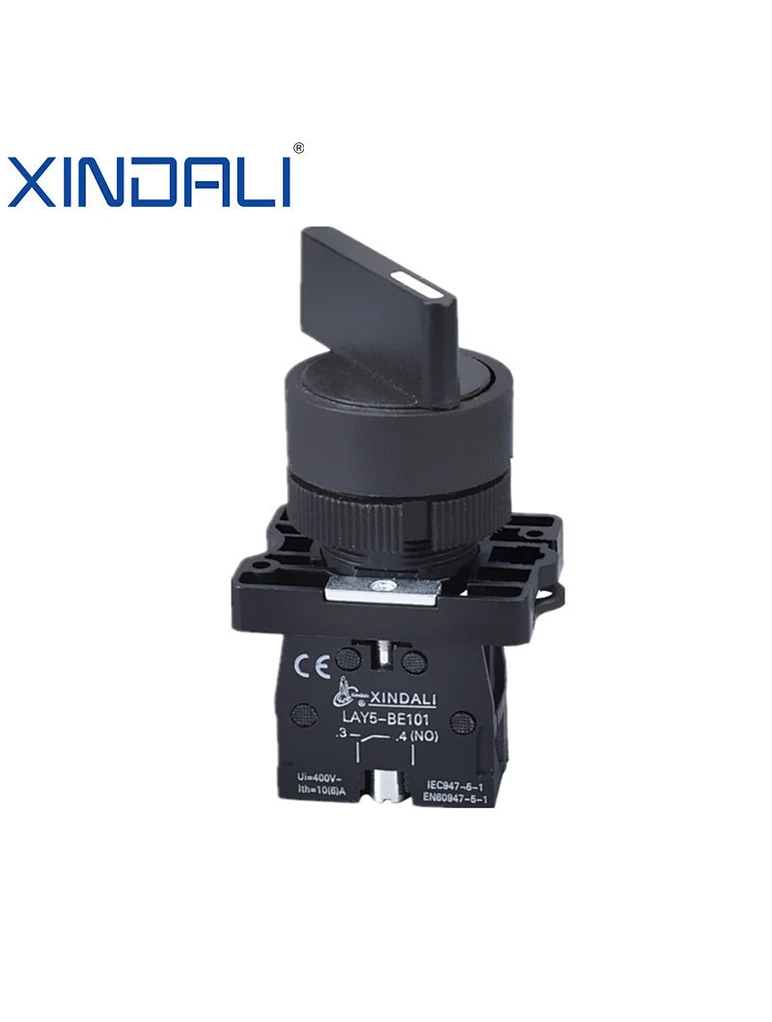

This selector is designed for elevator control and is equipped with an electric long-handled black button for easy operation. Its robust construction and high-quality materials ensure reliable performance and durability. The selector has a compact design, making it easy to install and use. It also features an ergonomic handle for comfortable operation and a clear indicator light to show the current status of the elevator. This selector is suitable for both residential and commercial elevators and can solve issues related to elevator control. With its reliable and robust design, this selector is an ideal solution for all your elevator control needs.
Main technical parameter | ||||
Basic technical parameter of button | Basic technical parameter of signal lamp | |||
Rated insulation | AC 600V(50Hz/60Hz) | Insulation resistance | ≥50MΩ | |
Conventional heating current | 10A | Contact resistance | ≤25MinΩ | |
Insulation resistance | ≥50MΩ | Pf withstand voltage | AC 2.5KV/min | |
Contact resistance | ≤25MinΩ | Voltage wave | ±20% | |
Mechanical life | 100x10000 | 50x10000 | Brightness | 60cd/m2 |
Electrical life | 500x10000 | 25x10000 | Continuous working life | 10x10000h |

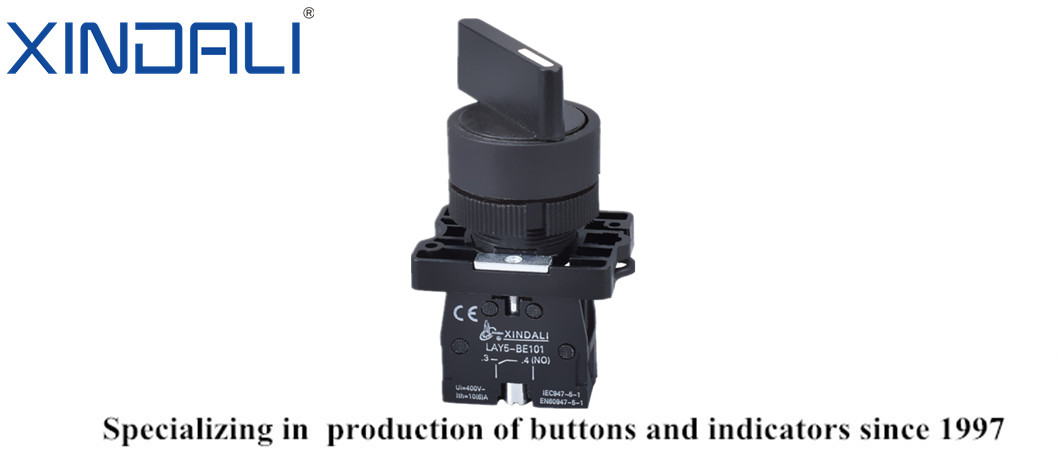

Product Show
