selector switch control box , button switch with key , push button switch control box

selector crane control button switch plastic box with key

selector crane control button switch plastic box with key

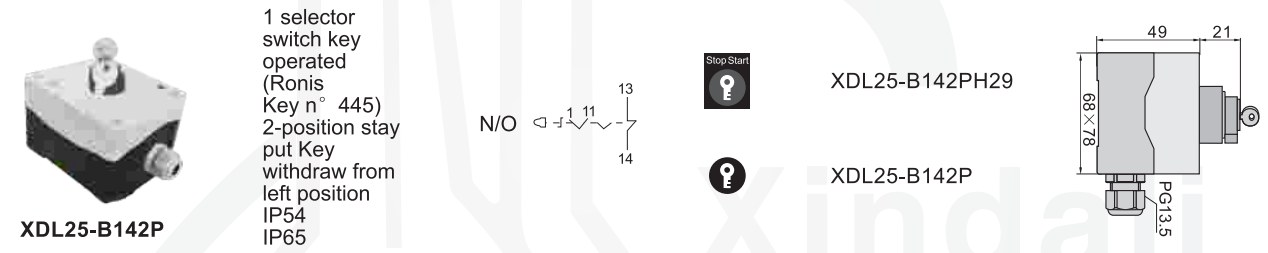

Model NO. XDL25-B142P

Delivery FOB

minimum order 100 pieces

Supply Ability 100000pieces / Month

Country of Origin WENZHOU

Stock Time 7Day

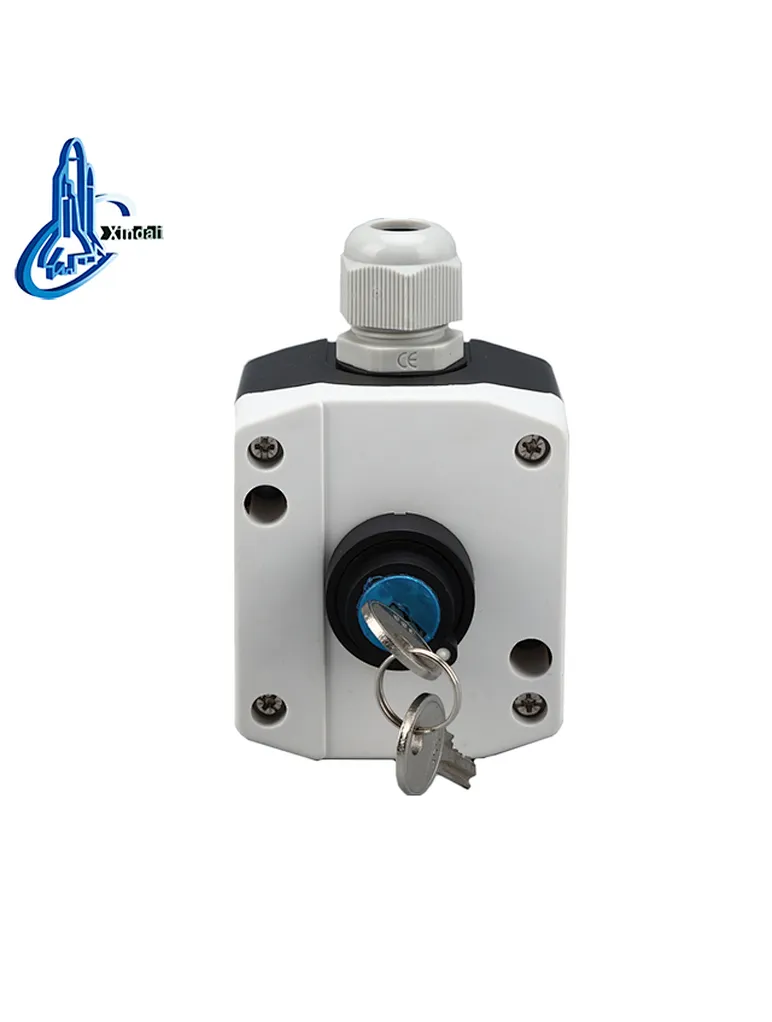

This plastic box comes with a key position button box and is ideal for controlling the movement of cranes and other machinery.

Quantity

Product Description

1 Operational temperation:-5°c - +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can't corroding metal and damage the insulation

Specifications:

1) Ambient temperature: -25~70Centigrade
2) Rated insulation voltage: UI=500V
3) Pollution class: III
4) Degree of protection: IP65/IP66
5) Altitude above sea level: <2, 000m
6) Meets IEC60947-5-1, EN60947-5-1

Product Name	lay5 push button control switch box
Material	nylon plastic
Color	grey, black,yellow. Other color, pls inquiry.
Standard	nitrile rubber(NBR)
Grade	1)quiescent state -40 °C to 100 °C ,short time 120 °C
Grade	2)dynamic state:-20 °C to 80 °C ,short time to 100 °C .V2(UL94), free of halogen
Thread	PG,M,PG-length,NPT,MG
Used	building industry machinery

Product Show
