Product Description
The push button series are used in controlling circuit of AC voltage up to 660V/AC 50Hz or 60Hz, rated voltage below 415V and
DC voltage below 250V. Which are applied to CNC machine, machinery, power sector, telecommunications, shipping,
metallurgy and chemical engineering,etc. It is used for controlling the circuit of electromagnetic starter, contactor, relay and
so on. The pushbuttons with indicator are applied to place where signal indicators are needed as well. The main body of the
push button is alloy and plastic.
The signal lamp serial are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz (or 60Hz), and the rated DC
voltage below 380V. It is used as indicating signals, warning signals and emergency signals,etc. The product confirms
to the standards of GB/T14048.1,GB/T14048.5 and IEC60947-5-1.
1.Characteristic：waterproof level IP67 Easy installation long service life,Higher performance than LAY series
2.Product Features：It is used for controlling signal and interlocking purposes.It is used for controlling the circuit of elecromagnetic starter,contactor,relay and so on.The pushbutttons with indicator are applied to place where signal indicators are needed as well.
3.Product material：The main body of the push button is alloy and plastic.
Basic Characteristic | |
Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
Ambient temperature | operating temperature:-5℃~+55℃ storage temperature:-25℃~+70℃ |
Operating and storage air relative humidity | 35~85%RH |
Vibration frequency | Conforming to IEC 68-2-6 |
Impact resistance | Conforming to IEC 68-2-27 |
Pollution grade | 3 |
Installation sort | ClassⅢ |
Protection grade | Ordinary:IP40 IP54 |
Protection:IP65 IP66 IP67 IP68 | |
Mechanical life | pushbutton:300*10 push and pull type |
Fastening torque | 0.8Nm(MAX:1.2Nm) |

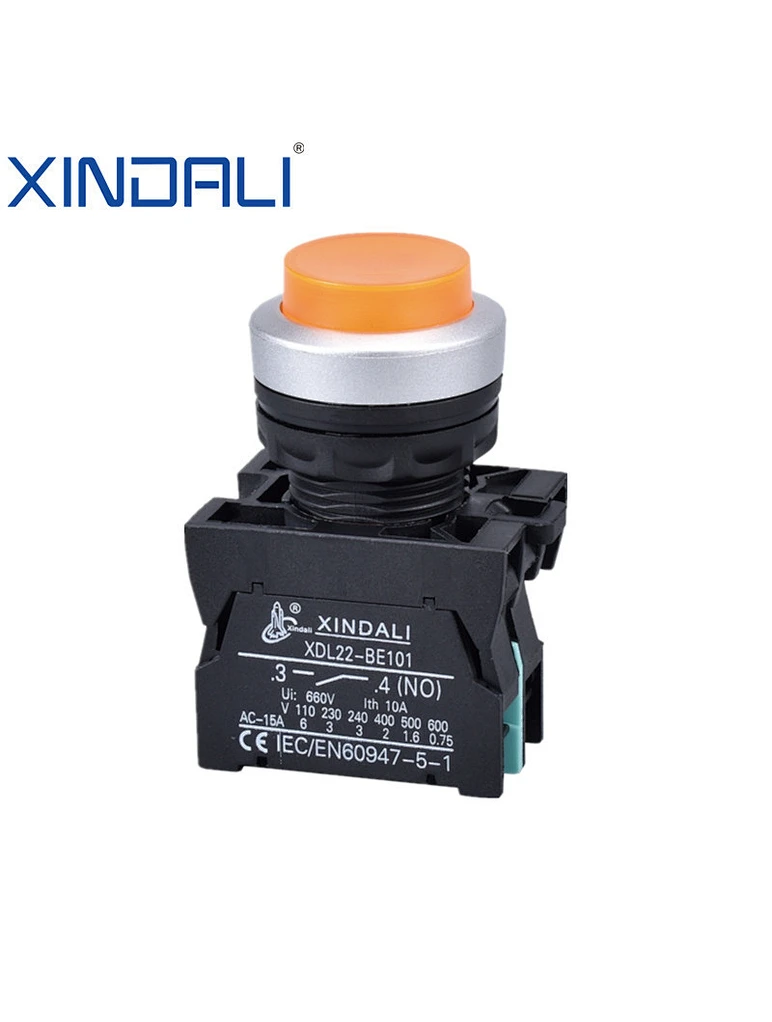

Product Show
