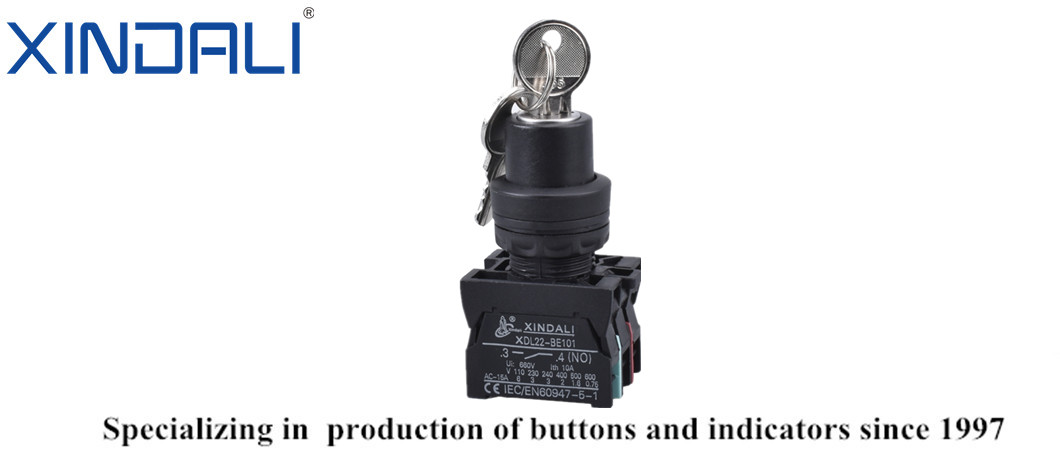

XDL22-EG25 Onoff Selector Switch Spring Waterproof Key Selector Switch

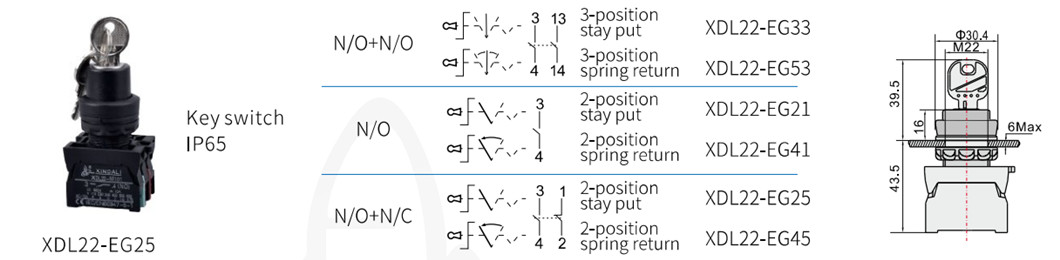

XDL22-EG25
This switch is perfect for controlling electrical circuits, with its waterproof and durable design.
Quantity
Product Description
Product Description
The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz,and DC voltgae below 400V.It is used for controlling signal and interlocking purposes.The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic.The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion.The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz,and DC voltage below 380V.It is ideal for using as indicating signals,warning signal,emergency signal,etc.Our products comply with GB/T14048.1 and IEC60947-5-1,all prouducts are CE,IOS9001,ROHS and UL certified.
| Basic Characteristic | |
| Conforming to standards as | IEC60947-5-1:GB/T14048.GB14048.5 |
| Ambient temperature | operating temperature:-5ºC~+55ºC storage temperature:-25ºC~+70ºC |
| Operating and storage air relative humidity | 35~85%RH |
| Vibration frequency | Conforming to IEC 68-2-6 |
| Impact resistance | Conforming to IEC 68-2-27 |
| Pollution grade | 3 |
| Installation sort | Class 3 |
| Protection grade | Ordinary:IP40 IP54 |
| Protection:IP65 IP66 IP67 IP68 | |
| Mechanical life | pushbutton:300*10 push and pull type emergency button:30*10 |
| Fastening torque | 0.8Nm(MAX:1.2Nm) |

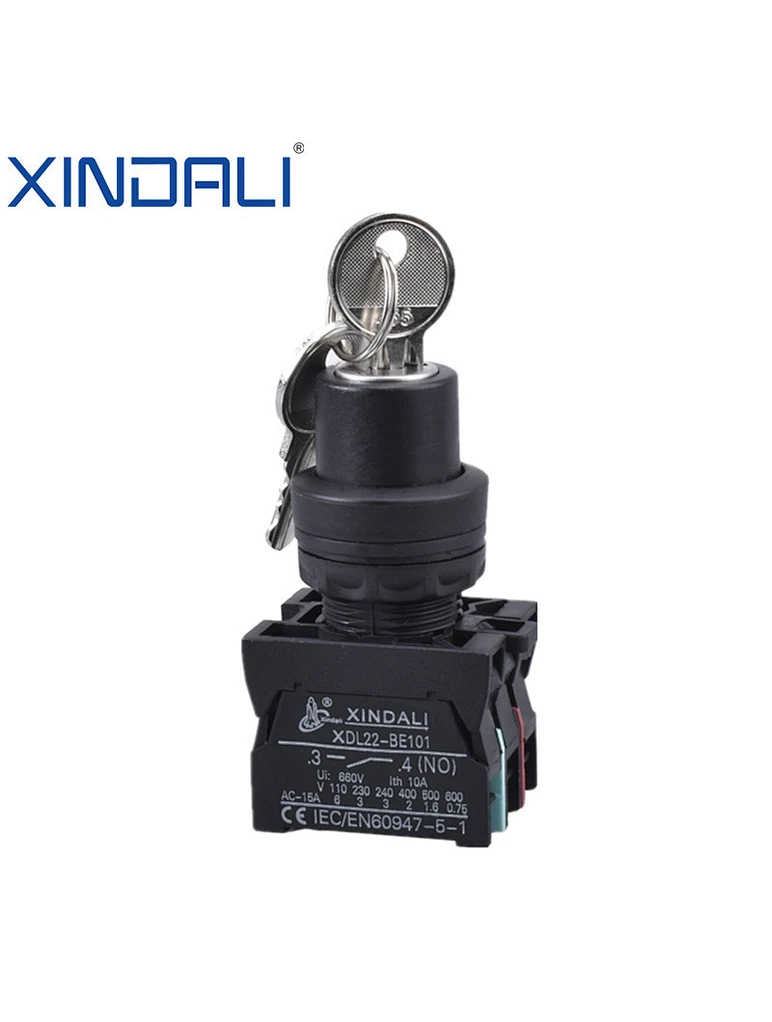

Product Show
