Product Description
AD22(LED) indicator lamp series of indicator is equally used LED shining chip as light source.Because of long life,low consumption,small volume and light weight,this indicator lamp is a new tpye of product replaced the older incandescent indicator lamp and led panel mount lights indicator of neon lamp.AD22 indicator light are pioduced by our factory enjoying following characters:high brighness,good reliability,beautiful shape and careful manufactured.Products indicator lamps are well praised by lots of clients. In order to fit in with top quailly and aestheticdemand of user,we develop AD22-22B,C,D,E,G,Hdouble-color lamp,position indicator,shining buzzer and mini short indicator,as well as design shape of AD22-22G/22GS series button and it is possible to meet all kinds of international srandard Lampshade,which is made of polycarbonate with high intension and enjoying better anti-surge performance,and bolt-type connector designed will make it safer and more convenient.All improvement will be provided to make your choice more convenient and your design perfect.this deries have indicator lamp 220v ac,indicator lamp 6v DC.
Main technical target | |
Voltage of working frequency | 2.5kV(AC valid value),1min |
Insulated resistance | ≥2MΩ |
Voltage wave allowed by AC indicator | ±20% |
Continual working life | ≥30000h |
Brightness | ≥60cd/m2 |
Index of leakage CT1 | ≥100 |
Protection grade is IP40,and it is possible to be made to up to IP67 | |
Using frequency: | AC50~60Hz |

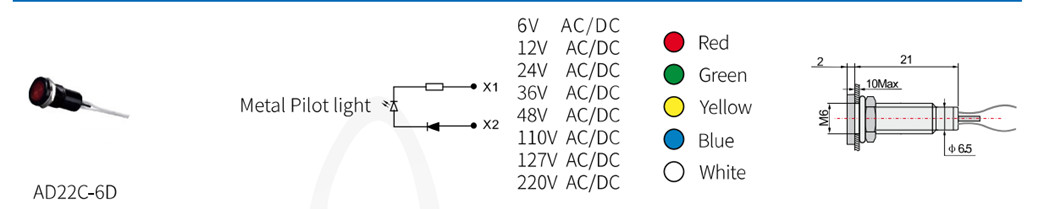

Products Show
