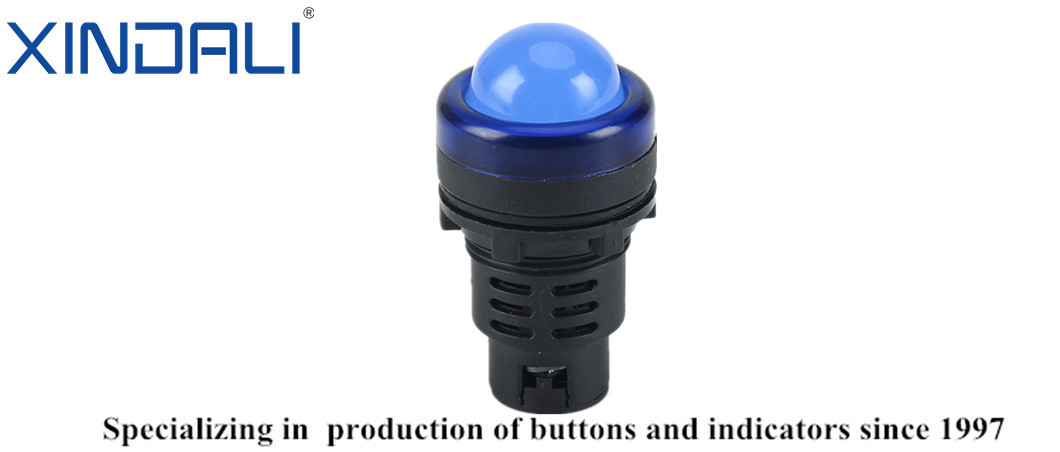

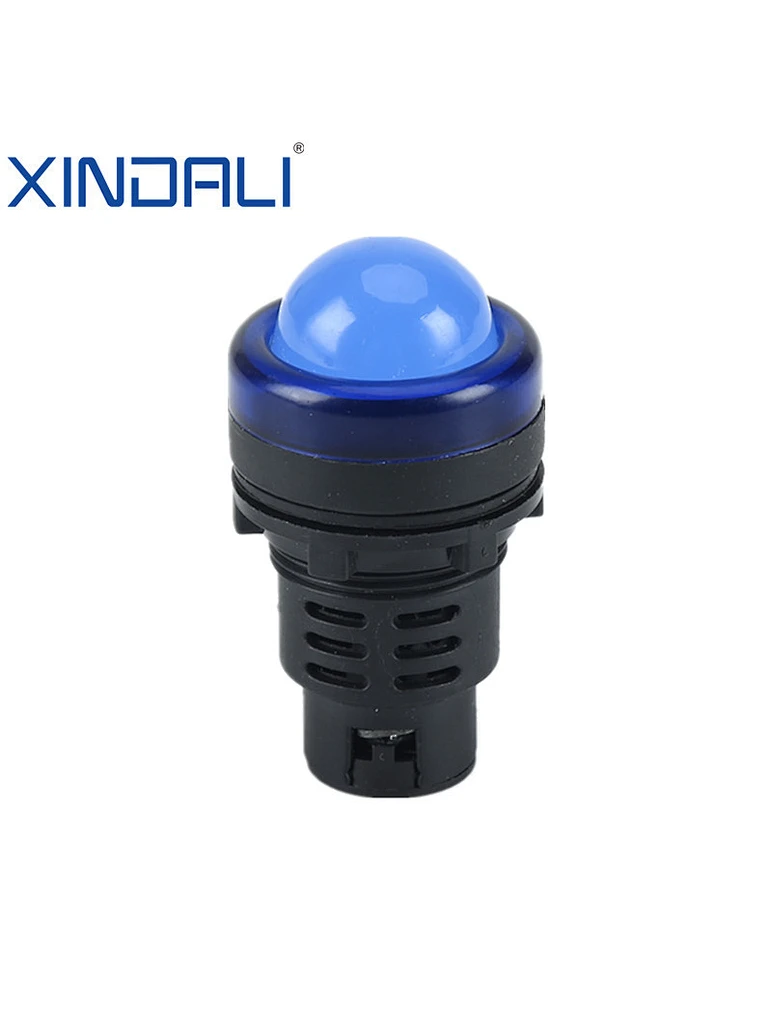

electrical 30mm low voltage spheroidal led light indicator pilot AD22-30AS

electrical 30mm low voltage spheroidal led light indicator pilot AD22-30AS

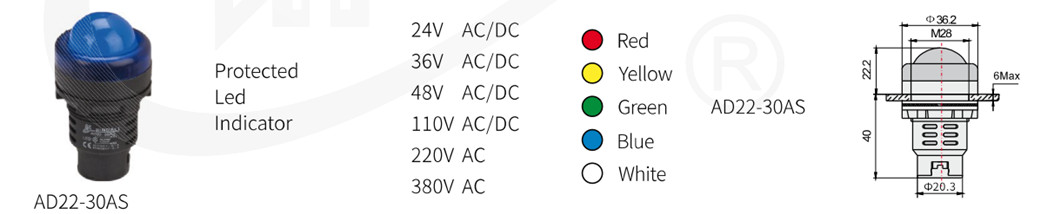

Model NO. AD22-30AS

Delivery FOB

minimum order 500 pieces

Supply Ability 10000000pieces / Month

Country of Origin wenzhou

Stock Time 7Day

Quantity

brand	XINDALI
MOQ	500PCS
payment	T/T L/C
delivery time	one week
cetification	ISO9001 RoSH CE UL TUV
cutout diameter	22mm

1.Characteristic：high birghtness，good reliability，beautiful shape and manufactured

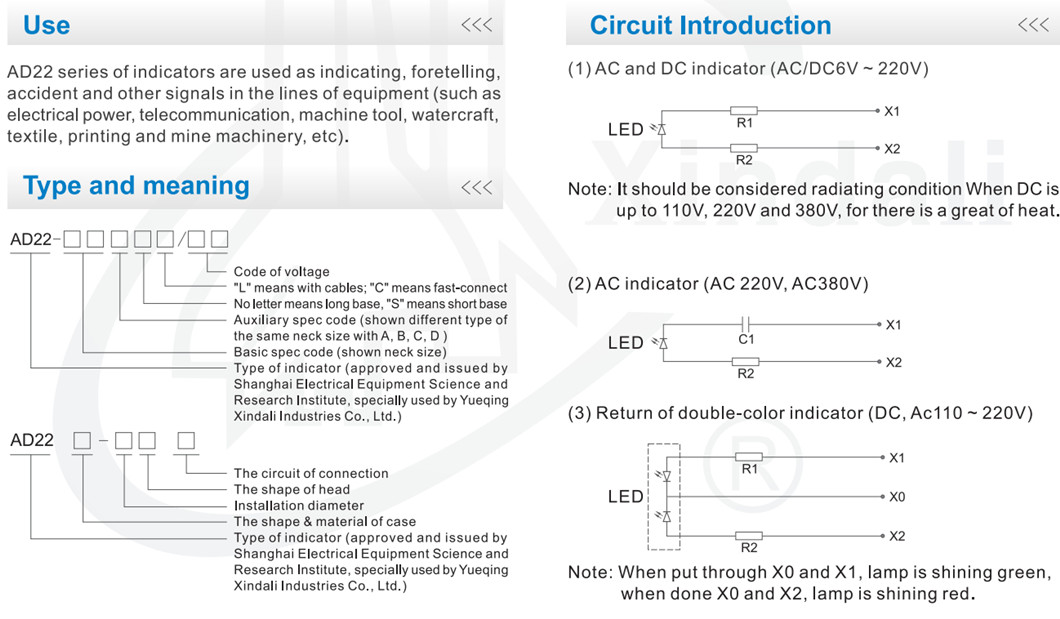

2.Product Features：AD22-22DS of indicator are used as indicating,foretelling,accident and other signals in the lines of equipment

3.Product material：it is possible to meet all kinds of international srandard Lampshade,which is made of polycarbonate with high intension and enjoying better anti-surge performance,and bolt-type connector designed will make it safer and more convenient.All improvement will be provided to make your choice more convenient and your design perfect.

Applicable environment
Surrounding temperature	-25℃~+55℃
Relative humidity	≤98%
It can normally work under the conditions of2-80Hz vibration frequency and 0.7g/h accelerated speed
Pollution grade：Ⅲ	Indtalled sort：Ⅲ
It is possible to work under the moist tropical environment if there is a“TH” sign

Main technical target

Voltage of working frequency

2.5kV(AC valid value），1min

Insulated resistance

1mΩ

Voltage wave allowed byAC indicator ±20%

Continual working life

≥30000h

Brightness

60cd/m2

Index of leakage CT1

≥100

Protection grade is IP40，and it is possible to be made to up to IP67

Using frequency

brand	XINDALI
MOQ	500PCS
payment	T/T L/C
delivery time	one week
cetification	ISO9001 RoSH CE UL TUV
cutout diameter	22mm

1.Characteristic：high birghtness，good reliability，beautiful shape and manufactured

2.Product Features：AD22-22DS of indicator are used as indicating,foretelling,accident and other signals in the lines of equipment

Applicable environment
Surrounding temperature	-25℃~+55℃
Relative humidity	≤98%
It can normally work under the conditions of2-80Hz vibration frequency and 0.7g/h accelerated speed
Pollution grade：Ⅲ	Indtalled sort：Ⅲ
It is possible to work under the moist tropical environment if there is a“TH” sign

Main technical target
Voltage of working frequency	2.5kV(AC valid value），1min
Insulated resistance	1mΩ
Voltage wave allowed byAC indicator ±20%
Continual working life	≥30000h
Brightness	60cd/m2
Index of leakage CT1	≥100
Protection grade is IP40，and it is possible to be made to up to IP67
Using frequency	AC50-60Hz

Product Show

AC50-60H

Product Show
