Product Description
1 Operational temperation:-5°c - +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can't corroding metal and damage the insulation
Specifications:
1) Ambient temperature: -25~70Centigrade
2) Rated insulation voltage: UI=500V
3) Pollution class: III
4) Degree of protection: IP65/IP66
5) Altitude above sea level: <2, 000m
6) Meets IEC60947-5-1, EN60947-5-1

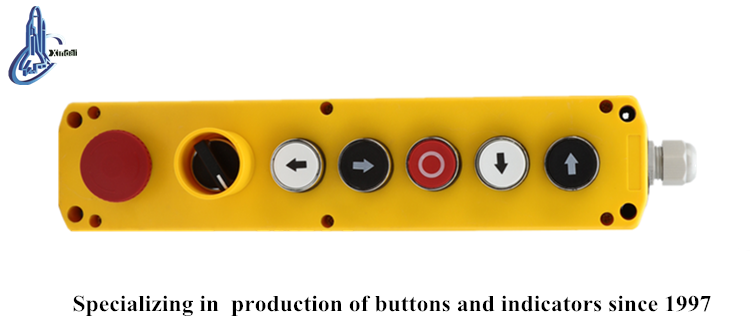

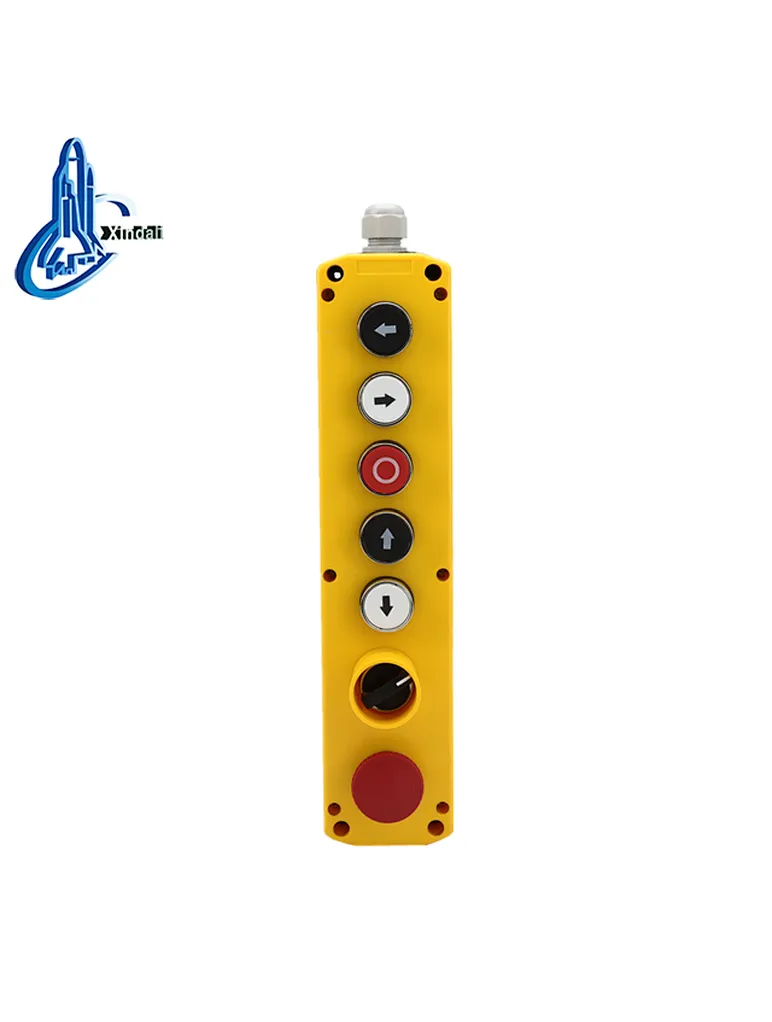

Product Name | IP65 XDL21 push button control switch box |
Material | nylon plastic |
Color | grey, black,yellow. Other color, pls inquiry. |
Standard | nitrile rubber(NBR) |
Grade | 1)quiescent state -40 °C to 100 °C ,short time 120 °C |
2)dynamic state:-20 °C to 80 °C ,short time to 100 °C .V2(UL94), free of halogen | |
Thread | PG,M,PG-length,NPT,MG |
Used | building industry machinery |
Product Show
