5 holes electrical push button switch pladtic electronic box XDL7-JB05P

electrical push button switch

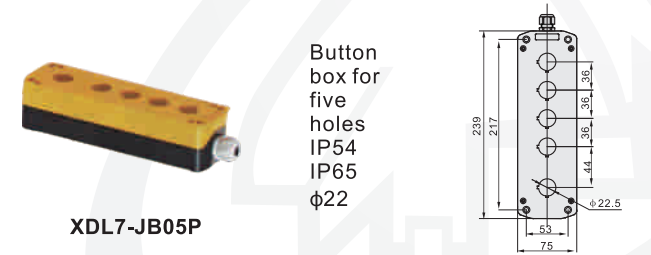

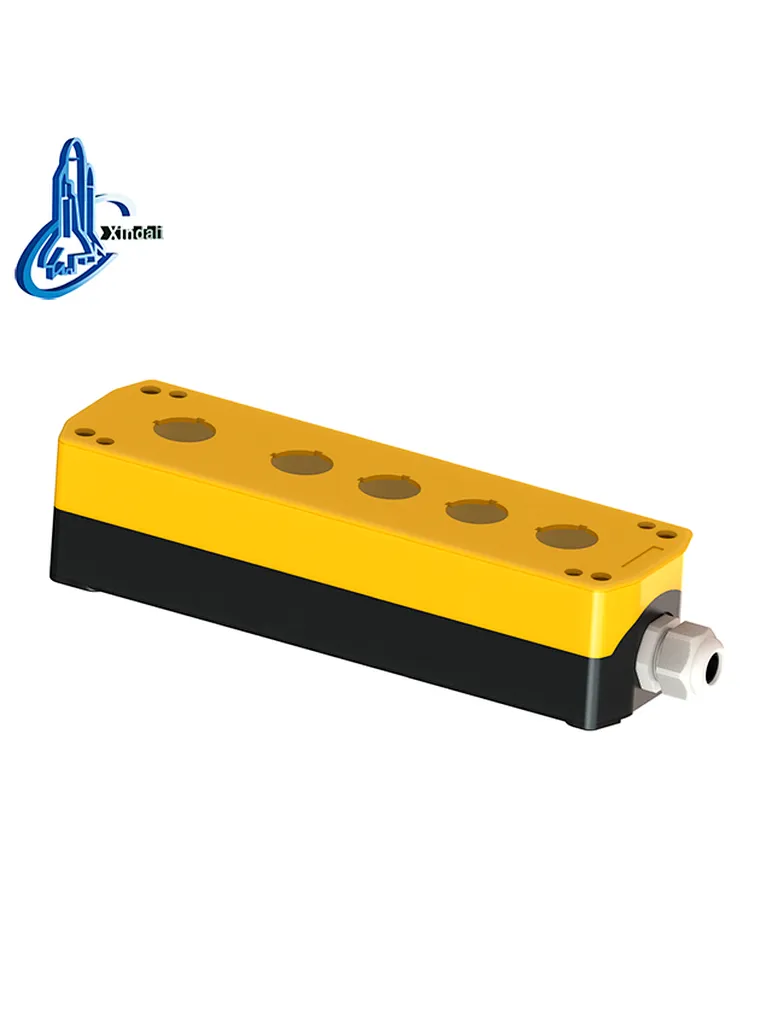

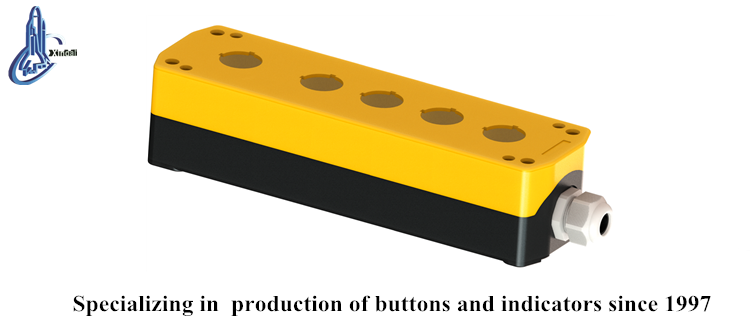

5 holes electrical push button switch pladtic electronic box XDL7-JB05P
XDL7-JB05P
FOB,EXW
50 pieces
1000000pieces / Month
WENZHOU
7Day
Quantity
Product Description
1 Operational temperation:-5°c - +40°c the average value less than +35°c in 24 hours
2 Altitude: less than 2000m
3 Atmosphere condition : when the maximum temperature is +40 °c ,the Operational humidity is less than 50%,allow higher humidity in cooler environments.
4 Pollution degree:3 level
5 Installs Category: II
6 No significant Shaking,no impact vibration and no snow or rain
7 No explosive media,the Gas and dust can't corroding metal and damage the insulation

Specifications:

1) Ambient temperature: -25~70Centigrade
2) Rated insulation voltage: UI=500V
3) Pollution class: III
4) Degree of protection: IP65/IP66
5) Altitude above sea level: <2, 000m
6) Meets IEC60947-5-1, EN60947-5-1
Product Name
push button switch box 6 hole
Material
nylon plastic
Color
grey, black,yellow. Other color, pls inquiry.
Standard
nitrile rubber(NBR)
Grade
1)quiescent state -40 °C to 100 °C ,short time 120 °C
2)dynamic state:-20 °C to 80 °C ,short time to 100 °C .V2(UL94), free of halogen
Thread
PG,M,PG-length,NPT,MG
Used
building industry machinery
Product Show
